1 Port 1000Mbps+1G uplink Industrial PoE media converter IP40 protection DC48-57V Power Input ,OEM factory EL1011G-SFP , EL1011GP-SFP (PoE)
Brand: ELINPOE
Model: EL1011G-SFP , EL1011GP-SFP (PoE)
Color: Black
Size(L*W*H):115x70x30mm
Weight: 0.5Kgs
Materials: Hardended aluminun
Installation: Pull-in Din rail
Dual power input: DC9V-52V
Application: outdoor traffic cross,expressway ETC,Oil station,coal mine,electricty station, water treatment station,factory automation,underground pipe gallery etc.
Description of Switch
1Port gigabit + 1G SFP Industrial Switch
1Port + 1G SFP Industrial PoE Switch
1Port + 1G SFP rugged ethernet switch
1Port + 1G optical Industrial media converter
EL1011G is an optical convergence integrated Industrial Ethernet Media Converter independently developed by our company. This product is mainly developed for the application of point-to-point networks, star networks, tree networks, and chain networks in the industrial field. It supports 1-port 10/100Base-TX and 1-port 100Base-FX, optional SFP, SC, ST, and FC interface, and the longest optical communication distance can reach 80KM.
In addition to its compact size, it has a high-performance switching engine, a wavy aluminum alloy shell with IP40 protection level, a fanless design and efficient heat dissipation surface, and an installed power input terminal over-current, over-voltage, the EL1011G Series features DC9-52 V redundant power inputs, DIN-rail mounting, high-level EMI/EMC capability, and an operating temperature range of -40 to 75°C available. The EL1011G Series has also passed a 100% burn-in test to ensure it will function reliably in the field. Therefore, it can provide reliable and convenient solutions for users’ Ethernet equipment networking.
★ The products are compatible with mainstream industrial automation protocols, not limited to Modbus TCP, Ethernet/IP, Profinet RT, EthernetCat, etc.
★ Using high-performance chips and the latest industrial design
★ Reliable anti-surge, anti-lightning, anti-electromagnetic interference, anti-vibration, stable and resistant to harsh working environments.
★ Din-rail installation (in the control cabinet or directly on the automation equipment).
★ Long service life
★ Fanless design, efficient wave-shaped aluminum alloy shell heat dissipation surface.
★ Supports redundant DC9-52V wide voltage and reverse polarity protection
★ The wide temperature design is resistant to long-term operation at a temperature from -40℃ to 75℃

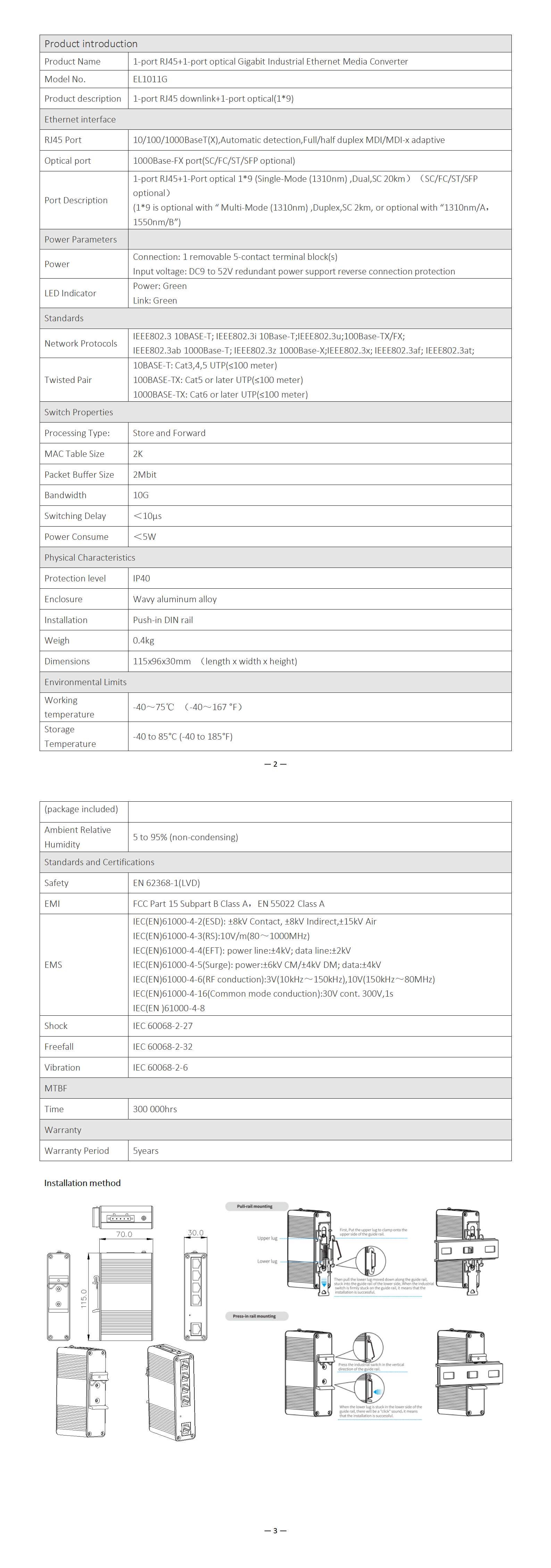

Specification of Switch
- Industrial media convertor 1 port +1 optical uplink:
- Size: 115x96x30mm,Switch weight: 0.5Kgs,QTY / Carton : 36Pcs,Origin: Made in China
