8 Port gigabit PoE+4G SFP L2+ Managed Industrial PoE+ Switch 240W PoE max EL84MGPI
Brand: ELINPOE
Model: EL84MGI ,EL84MGPI (PoE)
Color: Black
Size(L*W*H):148×132×53.5mm
Weight: 1.0Kgs
Materials: Hardended aluminun
Installation: Din rail
Dual power input: DC48V-57V(PoE) DC12-57V(Ethernet Switch)

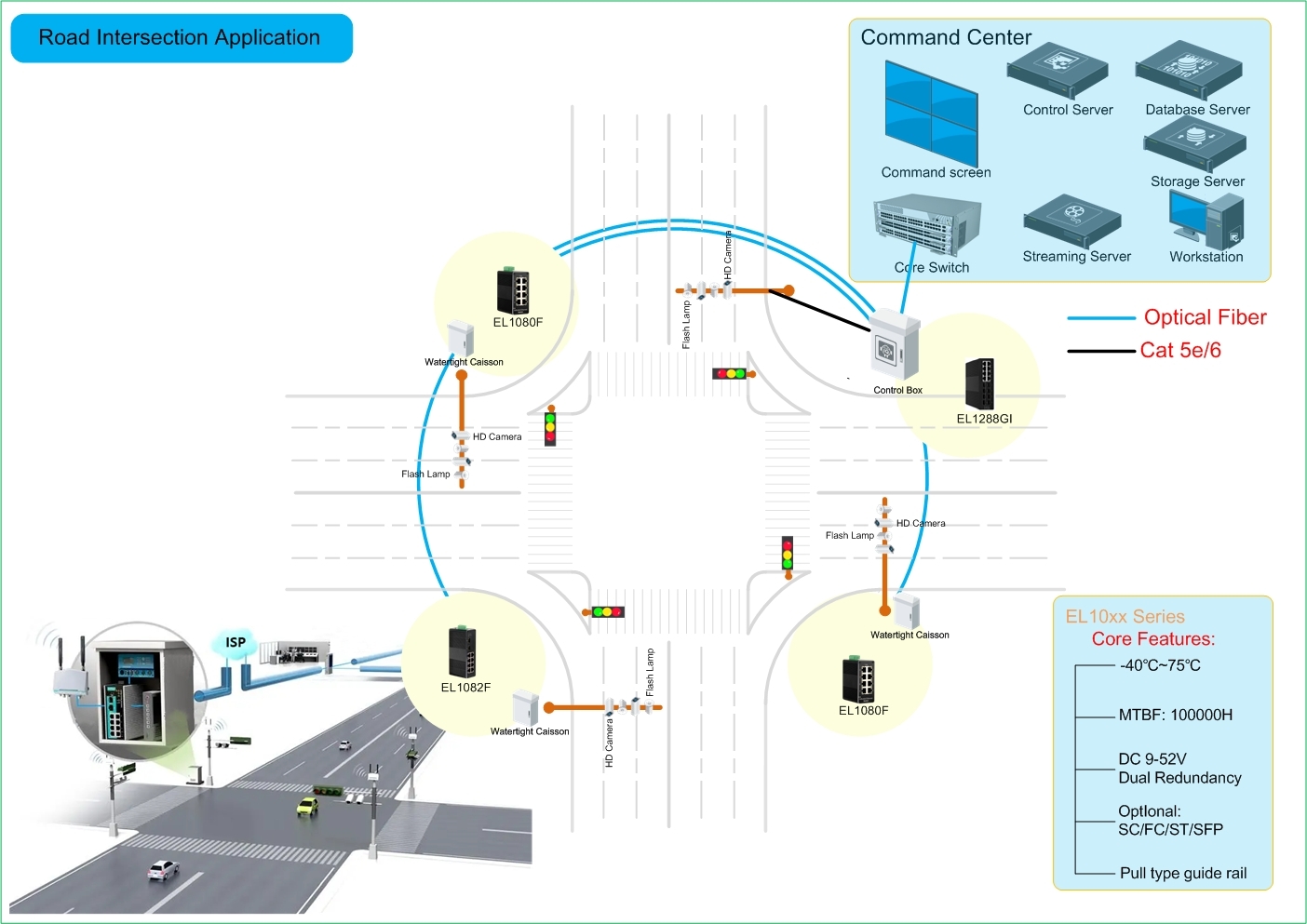

Application: outdoor traffic cross,expressway ETC,Oil station,coal mine,electricty station, water treatment station,factory automation,underground pipe gallery etc.
★ IP40 Aluminum full gigabit L2+ managed Industrial switch
★ 8 Port 10/100/1000Mbps RJ45 and 4G SFP
★ 8 Port PoE output
★ Support 802.1q VLAN. Support RSTP/MSTP spanning tree.
★ Support 802.1X certification , IPV6, SSL, QoS SNMP（V1/V2/V3）, IGMP Snooping, etc.
★ IPv4/IPv6 Static Routing, Address Resolution Protocol (Static ARP) Support VLAN, ACL, ERPS ring network
★ Power supply: DC48V-57V
|
Model No. |
EL84MGPI |
|
1000Base-TX Port |
8 Port RJ-45 auto-MDI /
MDI-X |
|
1000Base-FX Port |
4G SFP Slot |
|
PoE Specification |
PoE Standard: IEEE802.3af/ IEEE802.3at |
|
PoE ports:1-8 port support PoE(max.) |
|
|
Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) |
|
|
PoE port Auto detect af/at devices |
|
|
Output Voltage: DC48V |
|
|
Power Pin Assignment:1/2+;3/6- |
|
|
Power Type: End-span( Mid-span optional) |
|
|
Performance Specification |
Bandwidth: 56Gbps Packet Buffer Memory: 12Mbit Packet Forwarding Rate: 41.6Mpps
MAC Address Table: 8K |
|
Installation |
DIN rail |
|
Maximum Frame Size |
10240bytes packet size |
|
Flow Control |
Back pressure for half
duplex, IEEE 802.3x pause frame for full duplex |
|
Enclosure |
IP40 Aluminum housing |
|
LED Indicator |
Power: Red Fiber: Link (Green) Ethernet: Yellow |
|
Power Input |
48 to 57V DC redundant power |
|
Power Consumption |
5W
(excluded PoE) |
|
Surge protection |
± 4KV |
|
Network Protocols |
IEEE802.3
10BASE-T; IEEE802.3i
10Base-T; IEEE802.3u;100Base-TX/FX;
IEEE802.3ab
1000Base-T; IEEE802.3z
1000Base-X; IEEE802.3x; |
|
Network
cables |
10BASE-T:
Cat3,4,5 UTP(≤100 meter) 100BASE-TX:
Cat5 or later UTP(≤100meter) 1000BASE-TX:
Cat6 or later UTP(≤100 meter) |
|
Industry Standard |
FCC
CFR47 Part 15,EN55032 Class A IEC61000-4-2
(ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3
(RS): 10V/m (80~1000MHz) IEC61000-4-4
(EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5
(Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6
(CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16
(Common mode conduction): 30V (cont.), 300V (1s) |
|
MTBF |
300,000hours |
|
Dimensions (W x D x H) |
148×132×53.5mm |
|
Weight |
Product Weight: 1.0KG Packing
Weight: 1.2KG |
|
Working
Environment
|
Working
temperature: -40～85℃ ; Storage
temperature: -40～85℃ Relative
Humidity: 5%~95 %( no condensation) |
- EL84GPI :
- Origin : Made in China
