ELINPOE
5 Port gigabit Industrial PoE switch+1 Port 2.5G/1000Mbps/100Mbps SFP - EL1051GZ-SFP ,EL1051GZP-SFP (PoE)
Brand: ELINPOE
Model: EL1051GZ-SFP ,EL1051GZP-SFP
Color: Black
Size(L*W*H): 115x86x30mm
Weight: 0.5Kgs
Materials: Hardended aluminun
Installation: Pull-in Din rail
Dual power input: DC48V-58V
Description of Switch
5 Port Industrial media converter+2.5G SFP uplink
5 Port Industrial PoE switch with 2.5G SFP
2.5G SFP switch with 5 Port RJ45
2.5G PoE switch SFP compatible with 1000Mbps, 100Mbps
EL1051GZP is an integrated industrial PoE switch with 2.5G high bandwidth optical transmission , The SFP is compatible with 100Mbps / 1000Mbps / 2500Mbps SFP tranceiver. This product is mainly developed for the application of point-to-point networks, star networks, tree networks and chain networks in the industrial field. Supports 4 10/100/1000Base-TX PoE and 1 100/1000/2500 Base-FX, SFP interface, the longest optical communication distance can reach 60KM. Its high-performance switching engine has an IP40 protection grade casing, a fanless design and an efficient corrugated aluminum alloy casing heat dissipation surface. The power input end has overcurrent, overvoltage and EMC protection, and the RJ45 port has excellent EMC protection performance, making this series of products Able to adapt to harsh and dangerous industrial environments. Provide reliable and convenient solutions for users' Ethernet device networking.
★ The products are compatible with mainstream industrial automation protocols, not limited to Modbus TCP, Ethernet/IP, Profinet RT, EthernetCat, etc.
★ Supply 4 Port PoE, each port max. 30W
★ Using high-performance chips and the latest industrial design
★ Reliable anti-surge, anti-lightning, anti-electromagnetic interference, anti-vibration, stable and resistant to harsh working environments.
★ Din-rail installation (in the control cabinet or directly on the automation equipment).
★ Long service life
★ Fanless design, efficient wave-shaped aluminum alloy shell heat dissipation surface.
★ Supports redundant DC48-58V wide voltage and reverse polarity protection
★ The wide temperature design is resistant to long-term operation at a temperature from -40℃ to 75℃

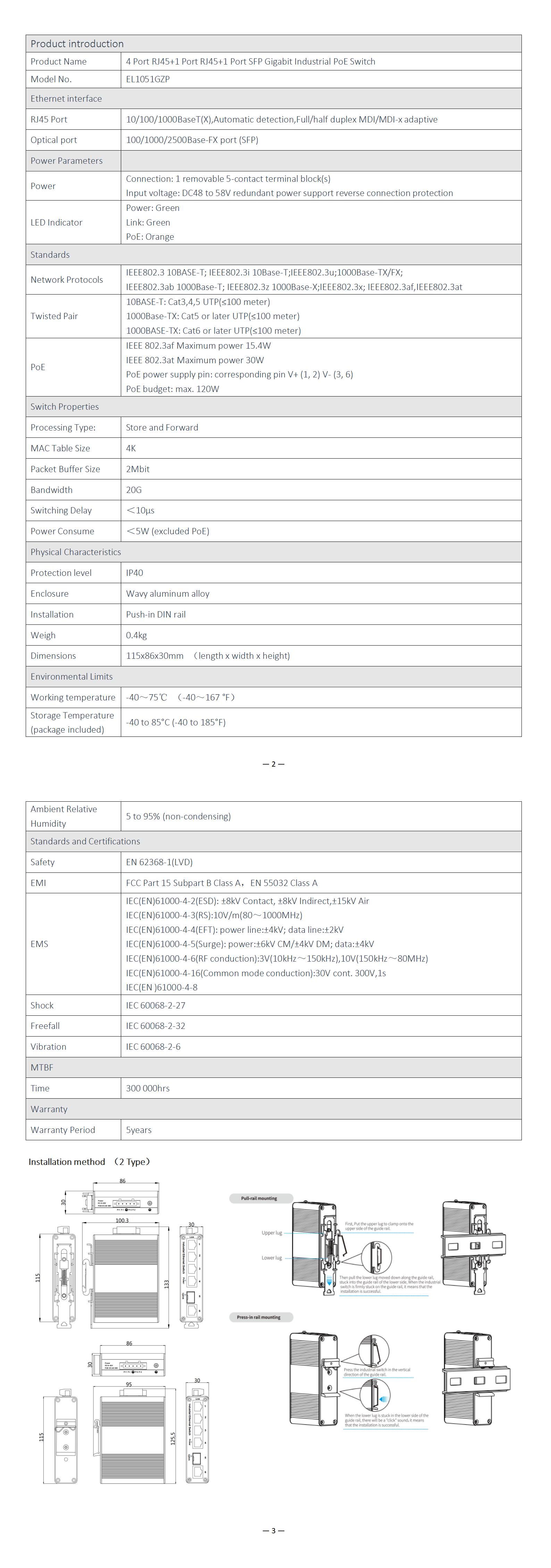

Specification of Industrial media cconverter
- 5 Port Industrial media converter,2.5G SFP:
- Size: 115x86x30mm,Switch weight: 0.5Kgs,QTY / Carton: 36Pcs,Origin: Made in China
