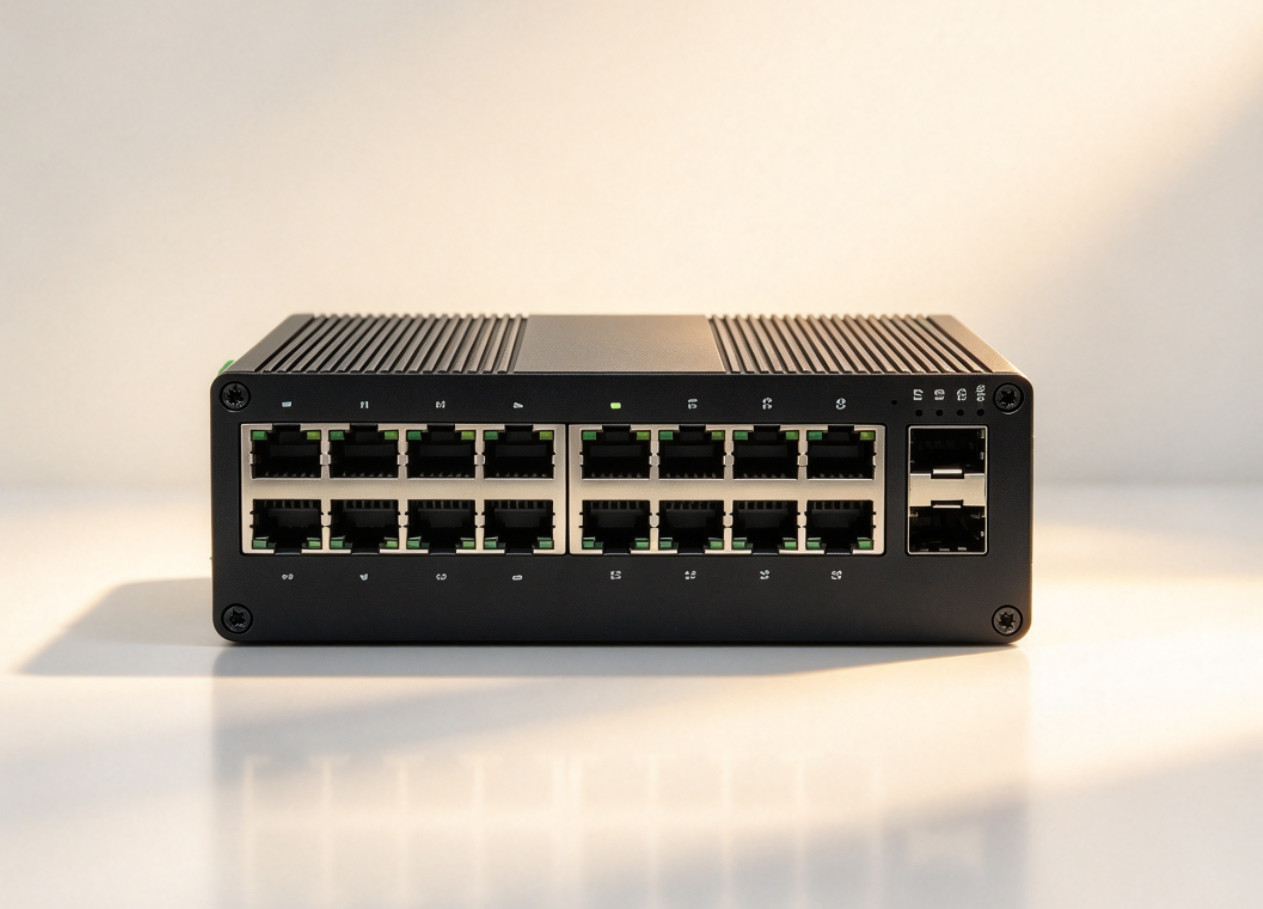

16 Port Industrial Switch 10/100+2G SFP
EL1162FG-SFP
Key Words
Features
- 16*10/100 Ethernet, 2 Port gigabit SFP
- Plug and play, no configuration required
- Store-and-forward switching architecture
- Supports 240W PoE output
- Fanless design for silent operation
Specifications
Model No. | EL1162FG-SFP |
Product description | 16-Port 10/100+2G SFP Industrial Ethernet Switch |
Ethernet interface | |
RJ45 Ports | 10/100BaseT(X),Automatic detection,Full/half duplex MDI/MDI-x adaptive |
Standards | |
Network Protocols | IEEE802.3 10BASE-T; 100BASE-T IEEE802.3i 10Base-T;IEEE802.3u;IEEE802.3x; |
Twisted Pair | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
Switch Properties | |
Processing Type: | Store and Forward |
MAC Table Size | 16K |
Packet Buffer Size | 4Mbit |
Bandwidth | 14.8G |
Switching Delay | ＜10μs |
Power Consume | ＜10Watts |
Power Parameters | |
Power | Connection: 1 removable 5-contact terminal block(s) Input voltage: DC12 to 52V redundant dual inputs support reverse connection protection |
LED Indicator | Power: Green Link: Green |
Physical Characteristics | |
Enclosure | Wavy aluminum alloy |
Protection level | IP40 |
Dimensions | 150x 126x 53mm （length x width x height) |
Weigh | 0.9kg |
Installation | Push-in DIN rail |
Environmental Limits | |
Operating Temperature | -40～75℃ （-40～185 °F） |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
Safety | EN 62368-1(LVD) |
EMI | FCC Part 15 Subpart B Class A，EN 55032 Class A |
EMS | IEC(EN)61000-4-2(ESD): ±8kV Contact, ±8kV Indirect,±15kV Air IEC(EN)61000-4-3(RS):10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT): power line:±4kV; data line:±2kV IEC(EN)61000-4-5(Surge): power:±6kV CM/±4kV DM; data:±4kV IEC(EN)61000-4-6(RF conduction):3V(10kHz～150kHz),10V(150kHz～80MHz) IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s IEC(EN )61000-4-8 |
Shock | IEC 60068-2-27 |
Freefall | IEC 60068-2-32 |
Vibration | IEC 60068-2-6 |
MTBF | |
Time | 300 000hrs |
Warranty | |
Warranty Period | 5 years |
